The Colossal Scale of Bagger 288: The World's Largest Land Machine

Quick Answer

The heaviest and largest self-propelled land machine in human history is the giant bucket-wheel excavator built by Germany's Krupp: Bagger 288.
It measures approximately 225 m (738 ft) in total length, 96 m (315 ft) in height, and weighs a staggering 13,500 tons.

Taller than the Statue of Liberty (93 m) and longer than two football fields placed end to end, this gargantuan machine was built to remove overburden and mine lignite (brown coal) at massive open-pit mines in Germany.
Excavating up to 240,000 m³ (about 240,000 tons) of earth per day, it possesses the astonishing capacity to dig a hole the size of an entire soccer field 30 meters deep in just 24 hours.

Size Comparison

Numbers alone do not easily capture the true scale of 13,500 tons and 225 meters. Comparing Bagger 288 alongside everyday objects and landmarks makes its sheer magnitude immediately apparent.

A 7-Story Rotating Wheel and Excavation Mechanism

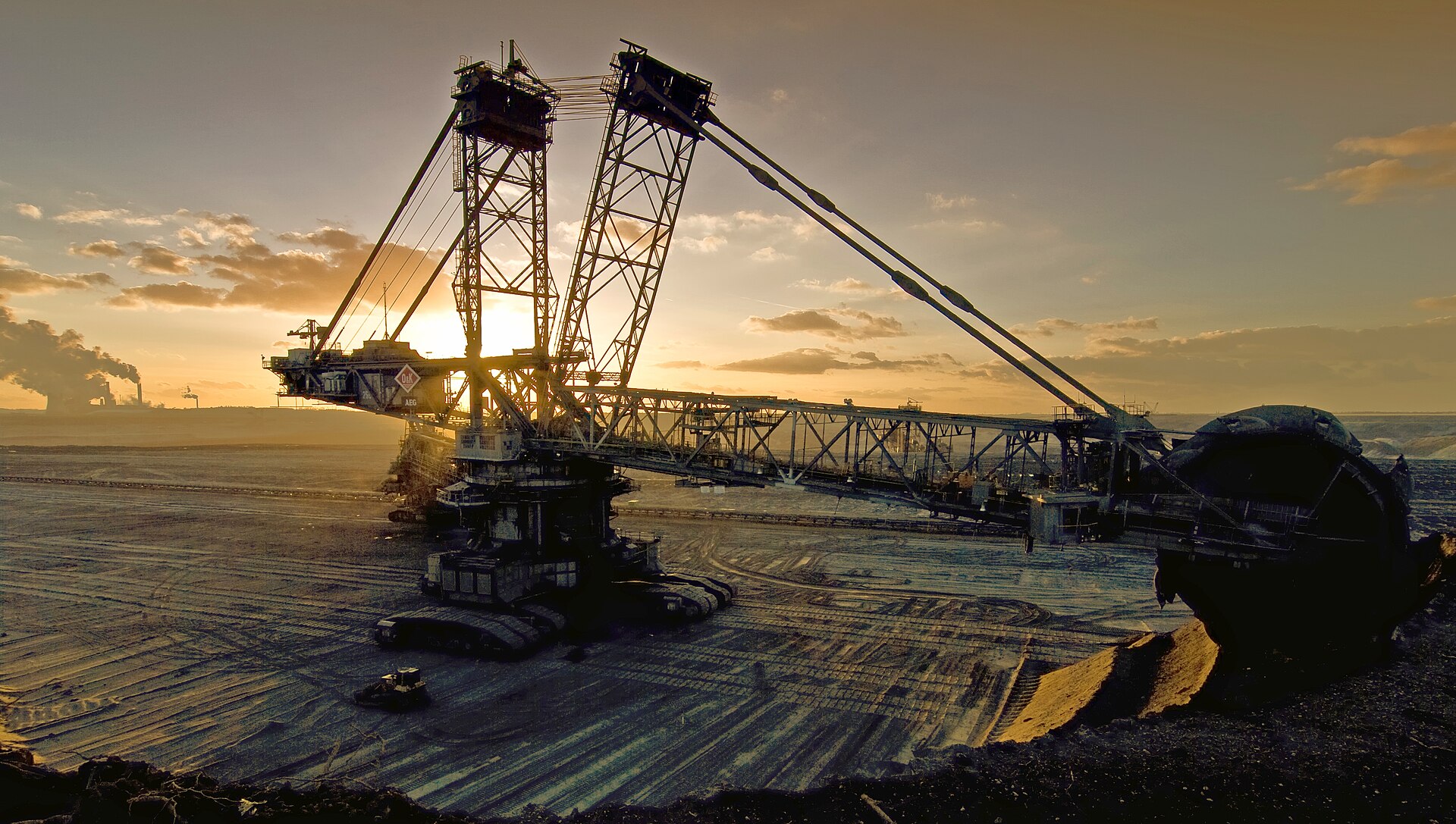

The massive rotating bucket wheel The defining feature of Bagger 288 is the colossal revolving wheel mounted at the front of the machine: the bucket wheel.

• [Giant 21.6-Meter Diameter Wheel]
  The bucket wheel itself measures roughly 21.6 meters across, rivaling the height of a 7- to 8-story building.
• [18 Gargantuan Buckets]
  Lining the circumference of the wheel are 18 massive steel buckets. Each bucket has a volume of about 6.6 m³, spacious enough to easily accommodate a compact car or several adults.
• [Continuous Digging and Conveyor System]
  As the wheel revolves and carves into the ground, excavated earth and coal dump onto an internal conveyor system. This network continuously channels thousands of tons of material per hour out the rear discharge boom into waiting freight trains or secondary conveyor systems.

The Secret to How a 13,500-Ton Titan Doesn't Sink

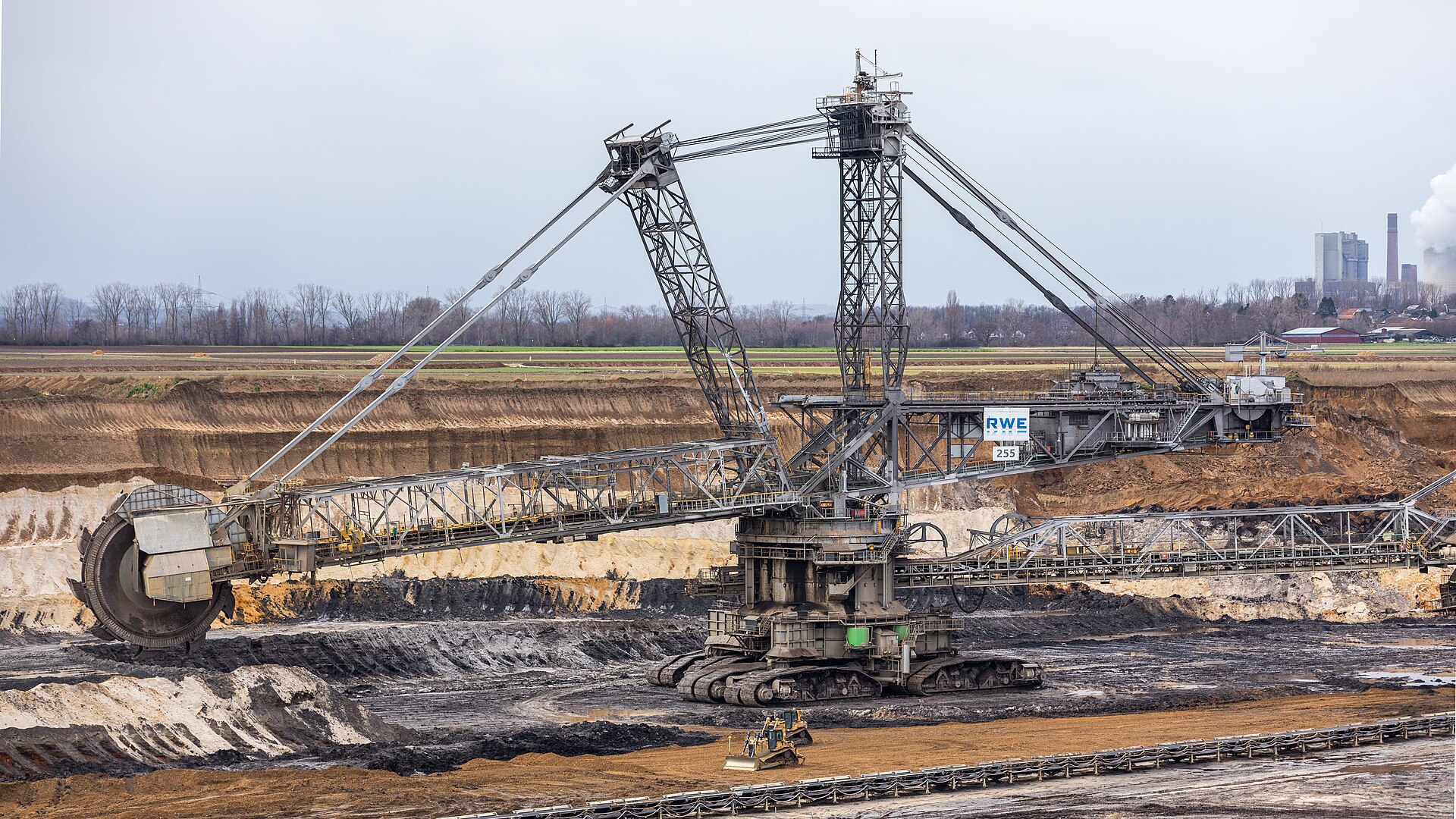

View of Bagger 288, making the standard excavator in front look minuscule Bagger 288 significantly outweighs the steel framework of the Eiffel Tower (approx. 7,300 tons). The key that allows such a massive heavyweight to travel across soft mine soil and gravel without sinking lies in its specialized undercarriage.

How Bagger 288 distributes its immense weight across the ground

• [12 Massive Crawler Tracks]
  Arranged in three rows of four, a total of 12 giant caterpillar tracks support the entire structure. Each track measures 3.8 meters wide.
• [Ground Pressure Comparable to Human Footsteps]
  By distributing 13,500 tons across an immense surface area, the ground pressure exerted on the terrain is remarkably low—only about 17.1 N/cm² (approx. 0.17 bar). Astonishingly, this is comparable to the pressure exerted by a human adult walking in shoes across soft ground.

The Historic 22-Kilometer Journey in 3 Weeks (2001)

Full overview of Bagger 288 in operation In February 2001, when mining operations at the Garzweiler mine were completed, operator RWE decided to relocate Bagger 288 to the Hambach mine, 22 kilometers away.

Engineers calculated that walking the colossal excavator in one piece would be significantly more economical than dismantling, transporting, and reassembling it.

• [A Slow-Motion March at 0.1 to 0.6 km/h]
  Creeping forward at 2 to 10 meters per minute, the machine covered an average of about 1 kilometer per day.
• [Crossing Highways, Railways, and Rivers]
  To cross the six-lane Autobahn (A61), railway tracks, and the Erft River along its route, a massive civil engineering operation unfolded: laying down thick cushions of soil over asphalt to protect road surfaces and installing specialized bridge supports.
• With roughly 70 crew members and an investment of 15 million Deutsche Marks (approx. $7 million), Bagger 288 completed its three-week journey without a single incident and safely arrived at its new home.

The Pinnacle of Human Engineering Scale

While fixed skyscrapers reaching toward the sky like Burj Khalifa (828 m) and Lotte World Tower (554.5 m) showcase the majesty of architectural engineering, Bagger 288 demonstrates the awe-inspiring capabilities of mechanical engineering as a machine capable of reshaping entire landscapes under its own power.

Exploring this alongside ScaleCheck's [The Tallest Structures We Built] theme offers a fascinating look into how humanity has pushed the boundaries of physical scale—both in soaring vertical structures and gargantuan mobile machines.
